Haomei Aluminium is able to offer 5083 aluminium plate for tanker, 5182 aluminium plate for oil tanker, and 5454 aluminium plate for tank truck bodies. Our Aluminum tanker aluminum plate to achieve world-class standards, widely used in the industry, by many enterprises unanimously approved.
Product Introduction
5 series aluminium alloy material enjoy excellent corrosion resistance and welding performance, with wide application in marine, automovtive, railway transportation, oil and chemical industries etc. Haomei Aluminium is able to offer 5083, 5182 and 5454 aluminium hot rolled and cold rolled plate etc. Which are applicable for tank bodies.
The specific gravity of aluminum is about 1/3, which has the characteristics of light weight and can effectively reduce the tare weight of the tank truck trailer. That can effectively reduce vehicle fuel costs. Using aluminum alloy instead of traditional steel as the body material, can reduce vehicle weight of 30% ~ 40%, the research shows that the vehicle fuel consumption of about 60% of the car's own weight, body weight per 100 kg, fuel consumption per kilometer will be reduced from 0.4 L to 0.8 L.
Aluminum tank and ordinary carbon steel tank. It also has anti-corrosive function, loaded with corrosive materials. This is another major feature of the aluminum alloy tank. Aluminum tank, environmentally friendly vehicles. Aluminum tanker lightweight means reduce automobile fuel consumption and emissions, also means that it is environmentally friendly, because it contains a large amount of carbon dioxide emissions, to the environment is a big source of pollution, so the application of aluminum materials, environmental protection contributed. Aluminum tank semi trailer which could load gasoline, diesel, jet, chemical liquid, etc.
Specification
| Product Type | Thickness (mm) | Width(mm) | Length(mm) | |
| Plate | Wide Plate | 4-8 | 2200-2600 | 2000-12000 |
| Standard Plate | 4-8 | 1500-2200 | 2000-12000 | |
| Coil | Wide Plate | 4-8 | 2200-2600 | - |
| Standard Plate | 4-8 | 1500-2200 | - | |
Remark:
Typical width for tanker body and resistance plate: 1500/1600/1800/2000/2200/2400mm
Typical length: 5500/5750/6000/7500/7850/8600/11800mm
Quality Control Points
| Part | Control Points | ||
| Barrel, head | Surface quality Mechanical Property Thickness tolerance | -- | Flatness |
| Wall partition,Resistance plate | Mechanical Property Thickness tolerance | Surface Quality | Flatness |
Chemical Composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Standard |
| 5083 | 0.40 | 0.40 | 0.10 | 0.40-1.0 | 4.0-4.9 | 0.05-0.25 | 0.25 | 0.15 | EN573 |
| 5182 | 0.20 | 0.35 | 0.15 | 0.20-0.50 | 4.0-5.0 | 0.10 | 0.25 | 0.10 | |
| 5454 | 0.25 | 0.40 | 0.10 | 0.50-1.0 | 2.4-3.0 | 0.05-0.20 | 0.25 | 0.20 |
Mechanical Properties
| Alloy | Temper | Yield Strength | Tensile Strength | Elongation | 180°Min. Bend Radius | Standard |
| 5083 | O/H111 | ≥145 | 290-370 | ≥17 | 1.5t | EN14286 |
| 5083 | H32 | ≥215 | 305-385 | ≥12 | -- | ASTM B209 |
| 5182 | O/H111 | ≥125 | 280-350 | ≥26 | t | EN14286 |
| 5454 | O/H111 | ≥85 | 215-285 | ≥19 | t | EN14286 |
| 5454 | H32 | ≥180 | 250-305 | ≥12 | -- | ASTM B209 |
Haomei is capable of providing high quality standard products
| Type | Standard Plate | High Class Plate | Bright Plate | Mirror Plate |
| Surface | ★★★☆☆ | ★★★★☆ | ★★★★☆ | ★★★★★ |
| Roughness Ra/μm | 0.5-0.8 | 0.3-0.5 | 0.1-0.3 | ≤0.04 |
| Product Description | Smooth surface Defect deepness ＜Minus Tolerances Of Thickness | Fine and smooth surface No or only very little colour aberration and chatters | Bright, fine and Smooth surface No colour aberration and chatters | Mirror reflective Surface Reflectance ≥86% |
| Applicable Standards | GB/T 3880 | EN14286 ASTM B209 EN485 Customer special requirements | EN14286 ASTM B209 Customer special requirements | EN14286 ASTM B209 Customer special requirements |
| Application | Use directly or After brashing Tanker Body, Tanker Head Wall Partition, Resistance Plate | Use directly Tanker Body, Tanker Head Wall Partition, Resistance Plate | Use directly Tanker Body, Tanker Head | Use directly Tanker Body, Tanker Head |
Advantage
With the development of logistics industry speed, the importance of logistics vehicles began to highlight. the tank cars is one of the most commonly used logistics vehicles， it is widely used in the automobile transportation industry. In the pursuit of more efficient economic society, tanker light weight has also been developed by leaps and bounds, aluminum tankers have been gradually in the alternative of steel tankers.
Why we choose Aluminium tanker?
The weight of Aluminium Alloy Tanker is lower.
Aluminium density is 2.71g/cm³. At same volume, the aluminium weight is roughly one-third the weight of steel. Use the aluminium alloy in tanker application, greatly reduce the weight of tanker.
Aluminium Tanker plate has higher recovery value.
Because of aluminium alloy has good corrosion resistance, so after the tanker forced to scrap, there is not a big damage on the aluminium tanker, it can be recycle and reuse.
The aluminium alloy plate has good corrosion resistance.
The aluminium alloy plate has good corrosion resistance than steel, use aluminium alloy to produce the tanker body, it doesn't need to coat any protective layer, to transport a variety of liquids or liquefied gas, because of aluminium alloy tanker has very good corrosion resistance, thereby guarantee the oils more clean.
Aluminium tanker has good electrical conductivity and energy absorption capacity, more safe.
When tanker collide, because of its good electrical conductivity, there is less static electricity on the tanker, so it doesn't produce a spark, it reduces the incidence of accidents such as explosions.
High-quality aluminum plate is the guarantee and foundation of all tanker business transportation safety; Tank is the core of tank car industry, and tank car material is the main reference factor when selecting high quality tank cars.
5083 | 5182 | 5454
5083 aluminum alloy
5083 aluminum alloy in the high strength, heat treatment of the alloy, with good machinability, corrosion resistance and welding performance is widely used in traffic vehicles, such as ships, aircraft, vehicles and pressure vessels (tankers, refrigerated trucks, refrigerated containers) and so on.
5083 aluminum plate is the main alloy used for tank car, and high quality 5083 aluminum plate is insurance for the safety of transportation.. The quality of 5083 aluminum plate as tank car material has differences, and this will infect the purchase of tank cars. The selecting of high quality tank car material can express the comprehensive strength of the tank car manufacturers. At the same time, this will improve the safety of transportation and save lives in some ways.
At present, the tank car in domestic usually adopt 5083 aluminum plate with length within 12.5 m, width within 2.2 m, and the thickness are usually 5 mm, 6 mm, as well as 8 mm. A complete tank body needs 4 to 6 pieces 5083 aluminum plate. What's more, the most important tank body adopts 5083-H111 aluminum plate, and the tank lid on both sides adopts 5083-O aluminum plate. O temper is softer, and tank lid need to curve, so the clapboard also adopts 5083-O aluminum plate. However, there are still some manufacturers that use 5454 aluminum plate with H111 temper to produce tank car body.
5182 aluminum alloy
5182 aluminum plate belongs to the al-mg-si alloy, the use of a wide range, especially the construction industry is inseparable from this alloy, is the most promising alloy. 5182 of the main alloying elements for the magnesium, and added a small amount of silicon, so welding 5182 aluminum with gas welding, spot welding and welding performance is very good.
The surface without skin, bubbles, surface rough and local mechanical damage, aluminum surface without defects; good corrosion resistance, cold workability is better, with moderate strength; and good welding performance.
The application of 5182 aluminium plates: Aircraft fuel tank, car body panels, electrical enclosures. Processing bracket parts, processing cans lid. Manufacture of tubing, street lamps, traffic vehicles and ships of the instruments, metal products, rivets.
5454 aluminum alloy
5454 tanker aluminum material quality differences, virtually also affect the customer evaluation and procurement of tankers. High-quality tanker material, the delivery is the tanker manufacturer's strength, professional and brand degrees, so that transport becomes more secure, more at ease.
5454 anti-rust aluminum plate is approximately 20% stronger than alloy 5052, and its properties are roughly similar with 5154. However, in some vicious environment, 5454 has a better corrosion resistance than 5154.
There are many tanker aluminum plate factories, but the product quality varies greatly, Haomei Aluminum tanker aluminum plate to achieve world-class standards, widely used in the industry, by many enterprises unanimously approved.

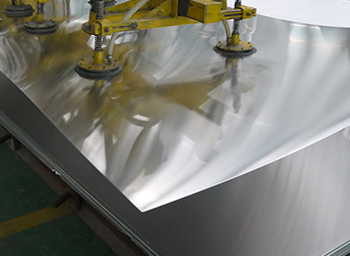

Plate Product

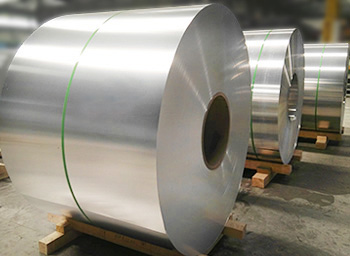

Coil Product
Concrete Mixer Truck

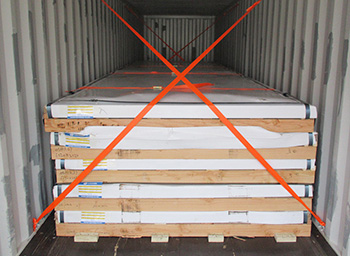

Packaging
Package
Haomei Aluminium packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Export Standard, Strong and moistureproof, Suitable for sea transportation.
2) Customization.
